Gantry Worktable
2M Gantry Worktable

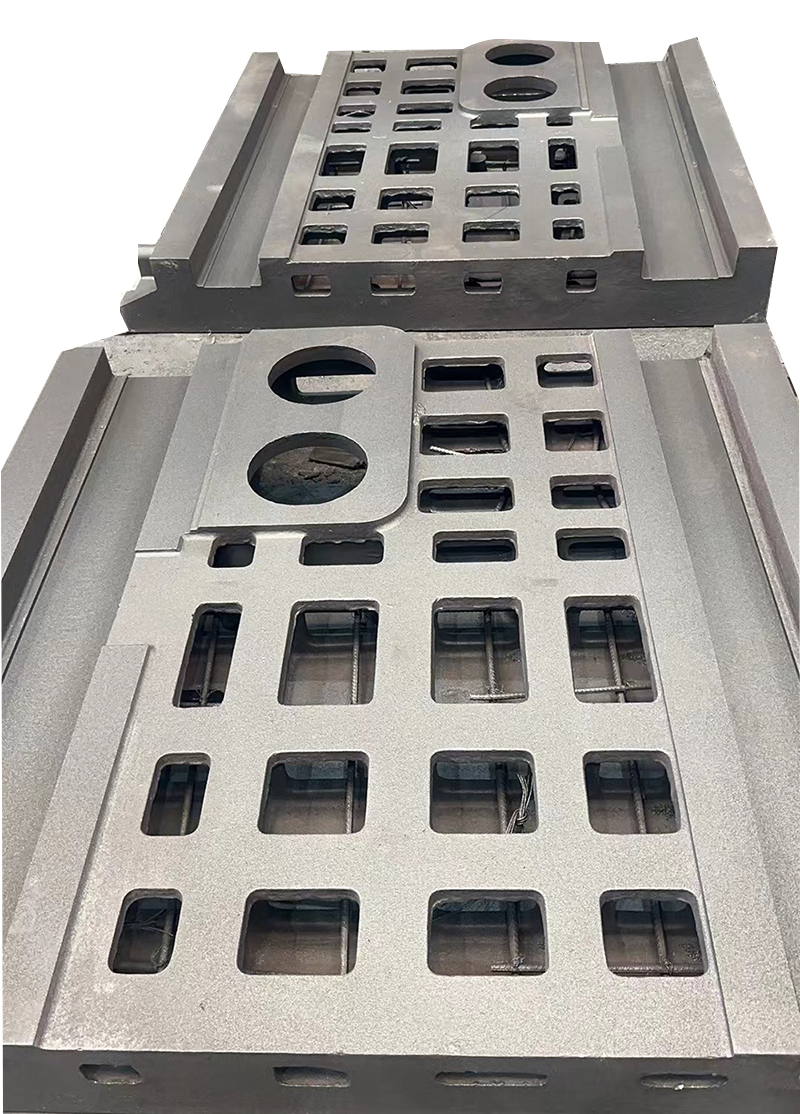

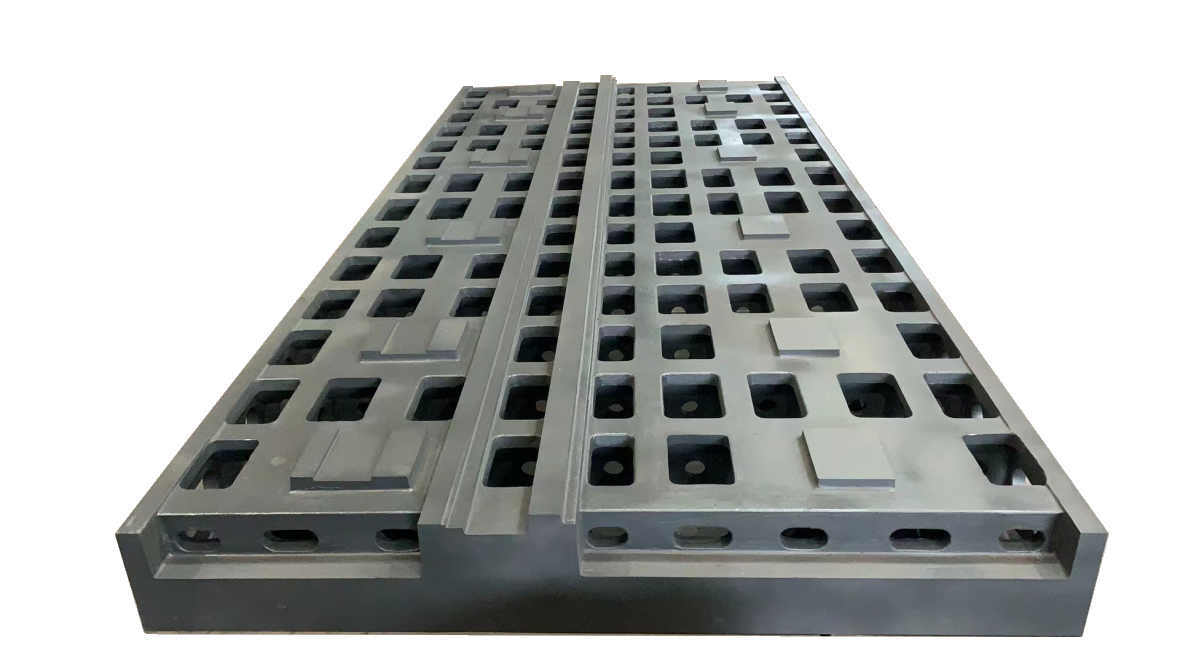

The worktable of the gantry machining center is basically rectangular. The large castings such as the worktable, bed, columns, crossbeams and slides are made of cast iron or welded parts. The inner cavity of the casting is a honeycomb composite arrangement structure with advanced design. They are all treated with aging and secondary tempering to eliminate residual internal stress to stabilize the material and ensure the stability of workpiece processing accuracy and machine tool life
Material:HT300
Weight:2800KG
Dimensions:2000*1400*500MM
Material:HT300
Weight:2800KG
Dimensions:2000*1400*500MM
Quantity:
Key Features
The material of the gantry worktable is mostly gray cast iron. The cast iron base material is HT200-300 high-strength cast iron, and the working surface hardness is HB170-240. It is also useful for marble but less. Gray cast iron (also known as gray cast iron) refers to cast iron with flake graphite,
which is called gray cast iron because the fracture is dark gray when broken. The main components are iron, carbon, silicon, manganese, sulfur and phosphorus. It is the most widely used cast iron, and its output accounts for more than 80% of the total output of cast iron.
Product Category
Jinfu Foundry is large machine tool foundry, the products material is cast iron or ductile iron.it is floor boring and milling machine, large-scale gantry planer, CNC gantry milling machine, face milling machine, gantry grinding machine and other large machine tools, such as guide rails, workbench, beam, and vertical arm. The ideal partner for equipment manufacturers.
Testing Equipment
- Italian GNR-S5 spectrometer
- B1-X portable metallographic microscope
- 4XC-PC metallographic microscope
- Micro control electro-hydraulic opportunistic universal testing machine
- PHB-1 Reducing hammer cloth hardness tester
- TH140 Leeb hardness tester
- ZDL-III Residual stress drilling device
- ON3500 oxygen and nitrogen analyzer
- LabSark1000 Spark direct reading spectrometer
- CS-3000 carbon sulfur analyzer
- MP-1 metallurgical experimental grinding and polishing machine
Our Support and Service
Whether you're just starting with our product or service, or need ongoing assistance, we are here to ensure you get the most out of your investment.
- Personalized Customer Support
- Customization
- 24/7 Technical Support
Why Choose us
JinFu has a professional team with excellent technology and standardized management, adhering to the development concept of people- oriented and scientific and technological innovation, striving to become a machine tool casting enterprise with core competitiveness!Jinfu Foundry passed the ISO9001 quality management system, CE certification, China Foundry Association members, Yunnan AAA-level contract and keeping promises units.
Excellent manufacturing equipment such as medium frequency induction furnace, large natural gas heat treatment furnace and large-scale spray shot blasting machine have won the Chinese casting field.The existing imported direct reading spectrometer, tensile testing machine, ultrasonic flaw detector and other advanced testing equipment, the implementation of strict inspection, size and appearance inspection of the factory products.Open casting design consultation, product quality feedback and quick access, promise product warranty replacement and return, and provide life-long product defect repair service.
