cast iron

Machine tool casting Five-axis Machining Center Bed

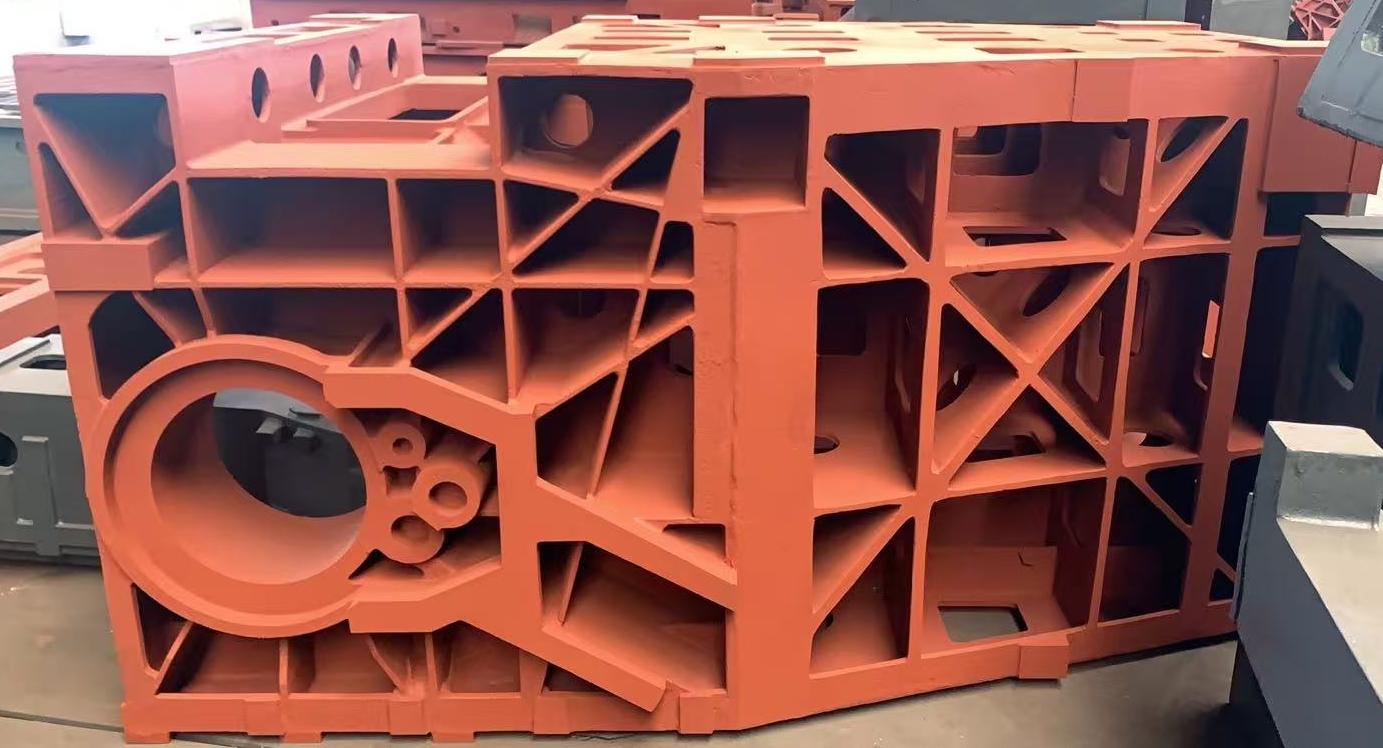

2.4M Five-axis Machining Center Bed
Five axis machining center Bed is the five axis machining center tool.Five-axis technology is not only for the most complex parts. While it certainly excels at that, a significant majority of the applications are simply used to enable the machining of five sides of a workpiece in a single setup. With three-axis machining, jobs might require two, three or more setups to get at all the features of the part. With the done-in-one approach, those additional setups are eliminated in addition to potential for error each time you reposition a part. The justification for a five-axis machine on these grounds is simple, with dramatic reductions in total setup, machine time and reduced fixturing

Material:HT300
Weight:6000KG
Dimensions:2400*1400*1600MM
Quantity:
Contact Now
add to cart
Key Features

The material of the machine tool casting base is mostly gray cast iron. The cast iron base material is HT200-300 high-strength cast iron, and the working surface hardness is HB170-240. It is also useful for marble but less. Gray cast iron (also known as gray cast iron) refers to cast iron with flake graphite,
which is called gray cast iron because the fracture is dark gray when broken. The main components are iron, carbon, silicon, manganese, sulfur and phosphorus. It is the most widely used cast iron, and its output accounts for more than 80% of the total output of cast iron.



Product Category

Jinfu Foundry is large machine tool foundry, the products material is cast iron or ductile iron.it is floor boring and milling machine, large-scale gantry planer, CNC gantry milling machine, face milling machine, gantry grinding machine and other large machine tools, such as guide rails, workbench, beam, and vertical arm. The ideal partner for equipment manufacturers.




Testing Equipment

  • Italian GNR-S5 spectrometer
  • B1-X portable metallographic microscope
  • 4XC-PC metallographic microscope
  • Micro control electro-hydraulic opportunistic universal testing machine
  • PHB-1 Reducing hammer cloth hardness tester
  • TH140 Leeb hardness tester
  • ZDL-III Residual stress drilling device
  • ON3500 oxygen and nitrogen analyzer
  • LabSark1000 Spark direct reading spectrometer
  • CS-3000 carbon sulfur analyzer
  • MP-1 metallurgical experimental grinding and polishing machine

Our Support and Service

Whether you're just starting with our product or service, or need ongoing assistance, we are here to ensure you get the most out of your investment.
  • Personalized Customer Support
  • Customization
  • 24/7 Technical Support

Why Choose us

JinFu has a professional team with excellent technology and standardized management, adhering to the development concept of people-  oriented and scientific and technological innovation, striving to become a machine tool casting enterprise with core competitiveness!Jinfu Foundry passed the ISO9001 quality management system, CE certification, China Foundry Association members, Yunnan AAA-level contract and keeping promises units.

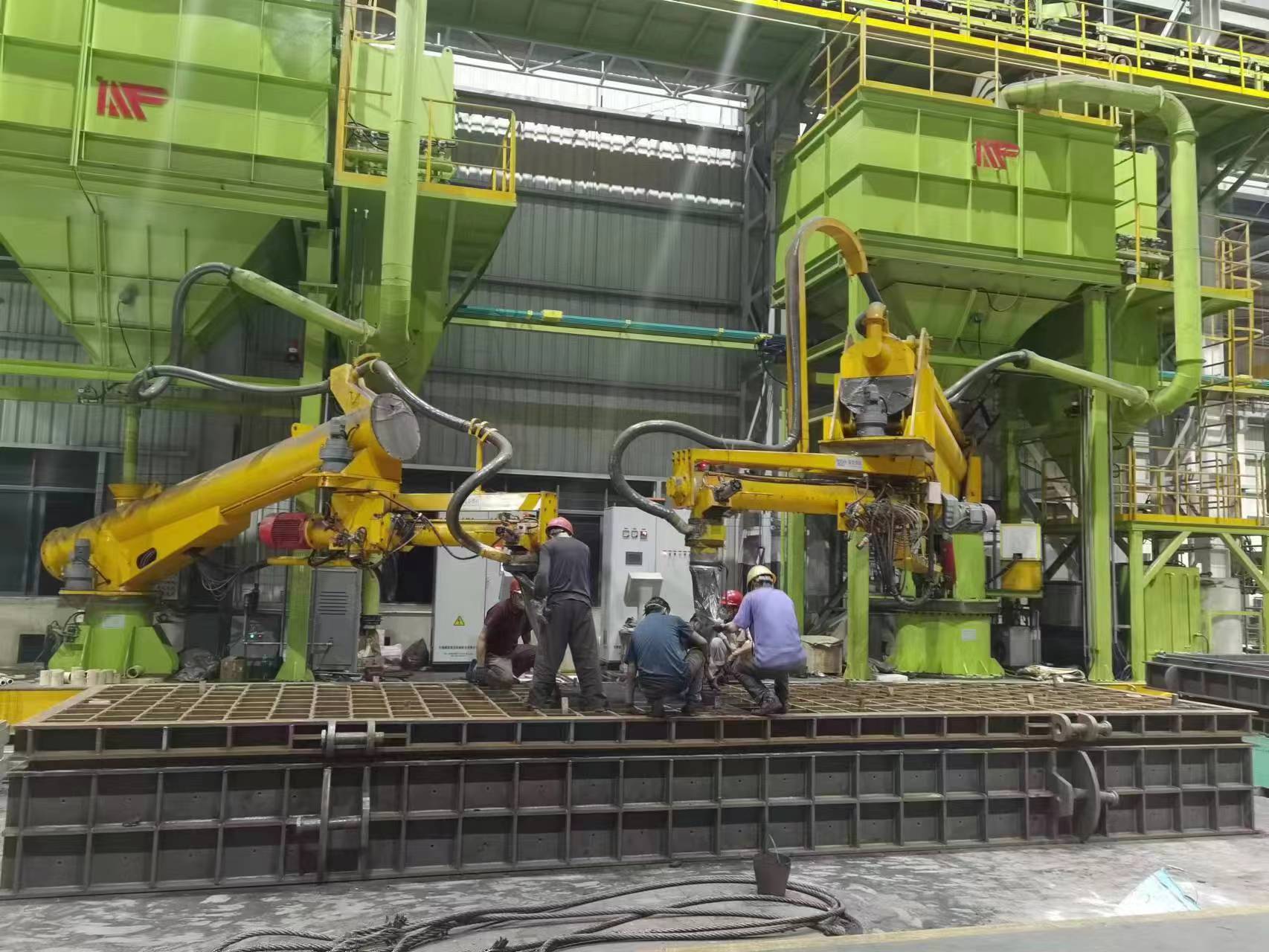

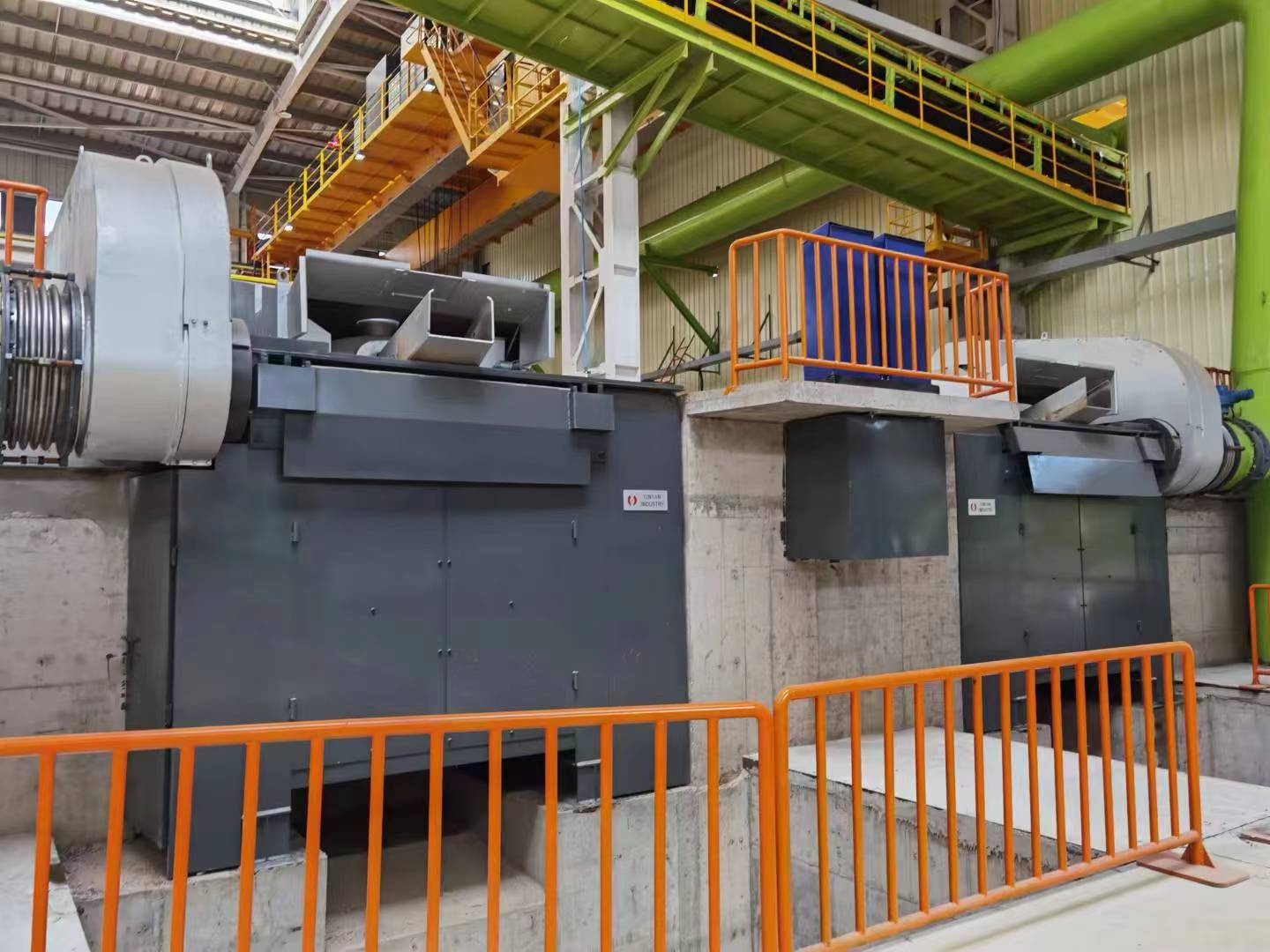

Excellent manufacturing equipment such as medium frequency induction furnace, large natural gas heat treatment furnace and large-scale spray shot blasting machine have won the Chinese casting field.The existing imported direct reading spectrometer, tensile testing machine, ultrasonic flaw detector and other advanced testing equipment, the implementation of strict inspection, size and appearance inspection of the factory products.Open casting design consultation, product quality feedback and quick access, promise product warranty replacement and return, and provide life-long product defect repair service.
